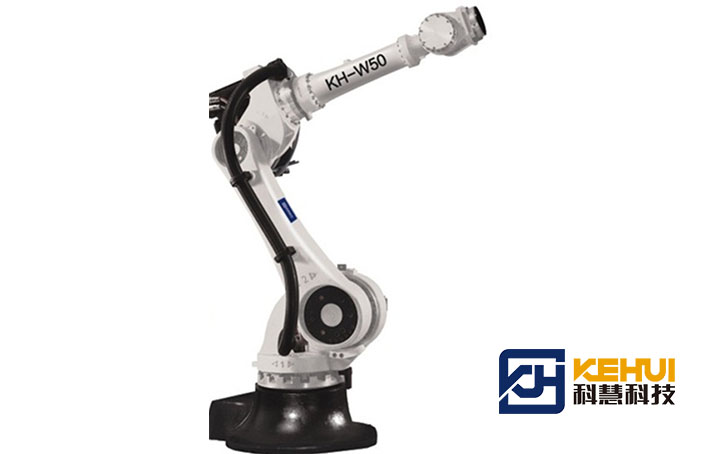

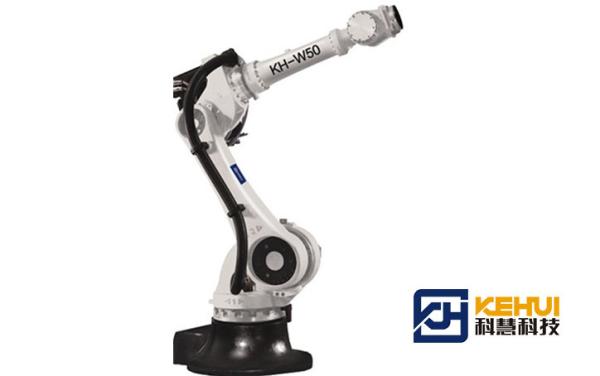

KH-W50 Welding Robot Auto Welding Machine Max Working Radius: 2124

Name: KHW50 Welding Robot Auto Welding Machine Max Working Radius 2124
Brand: Kehui Technology
Price: 1 USD

Brand Name : Kehui Technology

Model Number : KH-W50

Certification : ISO9001, CE, CU-TR

Place of Origin : Henan, China

MOQ : 1 production line

Payment Terms : L/C, T/T, Western Union, MoneyGramSupply

Supply Ability : 20 sets per year

Delivery Time : 180 days after payment

Packaging Details : in wooden box

Max Working Radius : 2124

Wrist Payload : 50kg

DOF : 6

Mass(weight) : 510kg

Working Temperature : 0-40°

Position Repeat Accuracy : ±0.25mm

Contact Now

The KH-N series robots are lightweight, with a payload of 50Kg and an effective working radius of 2110mm. Mainly suitable for medium load, wide range of work. The compact structure and high-precision reducer are installe

Application:

Assembly, Welding, Material handling, Palletizing, Die Casting, Assembly, Polishing

Material handling, palletizing, die casting, assembly
1. greater flexibility, more stable performance, lower energy consumption
2. Minimize errors by the visual function of the robot
3. with high performance throughput
4. long working hours
5. fixed automation
KH-W50 Welding Robot Auto Welding Machine Max Working Radius: 2124

KH-W50 Welding Robot Auto Welding Machine Max Working Radius: 2124

Assembly, welding
1. Stabilize and improve welding quality, high product consistency
2. improve productivity, continuous production 24 hours a day
3. Improve workers' working conditions and work long-term under harmful environment
4. Reduce the requirements for workers' operating technology
5. Shorten the cycle of product modification and reduce the corresponding investment equipment
6. can achieve batch product welding automation
7. save floor space

Grinding and polishing
Cutting, grinding, deburring, cleaning, polishing, water cutting and other processing applications

KH series universal robot is compact in structure. All joints are installed with high precision reducer. High speed joint motion ensures robot's flexible working in narrow space. The robot has felxible installation ways. It can do handling, palletizing, assembly, etc.

Model		KH-W50
Wrist Payload		520kg
Max Working Radius		2124mm
DOF		6
Maximum Speed	J1	140°/s
	J2	120°/s
	J3	120°/s
	J4	220°/s
	J5	300°/s
	J6	320°/s
Maximum Operation Area	J1	±165°
	J2	+130°~-60°
	J3	+75°~-195°
	J4	±360°
	J5	±120°
	J6	±360°
Mass(weight)		510kg
Position Repeat Accuracy		±0.25mm
Working Temperature		0-40°
